Main Features:

1. Essential Accessories for Laser Cutting
Honeycomb panel is a must-have component designed specially for use with laser engraver and cutter machines. When used for cutting wood boards, acrylic and other materials, the edges of the wood are neat and clean, which are not easily yellowed by smoke with less burn marks and cleaner cuts. This significantly improves cutting efficiency and quality, so you can get a clean cutting work.

2. Stable Support Base Design

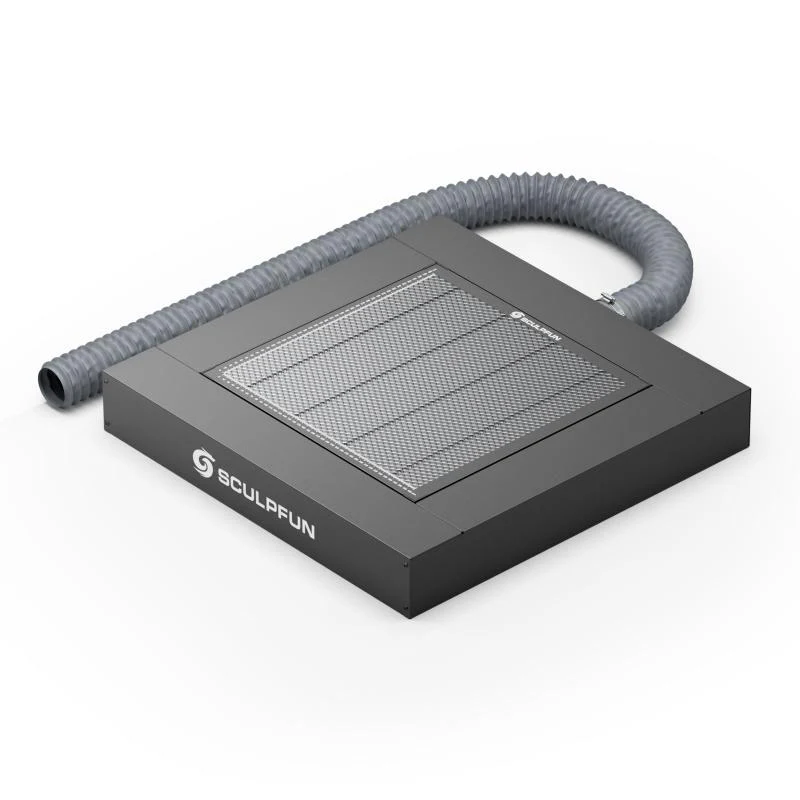

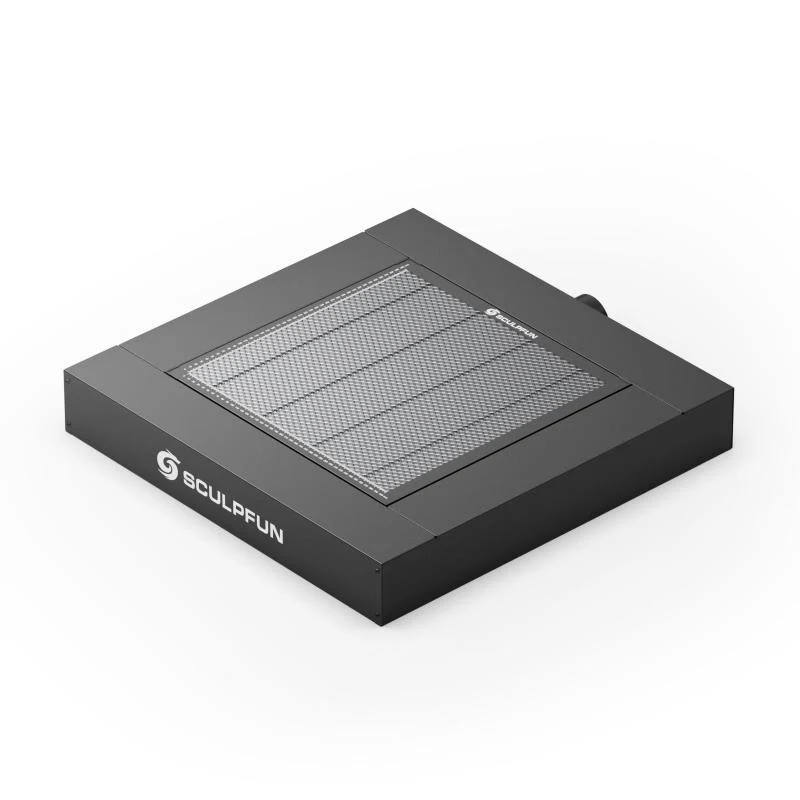

With the design of reinforced honeycomb structure and solid metal frame, this honeycomb laser bed is engineered to be both strong and stable. The included honeycomb panel support base is 100mm in height, measuring an overall area of 650*650mm, and the effective working area is 400*400mm, which makes it suitable for various laser engraving machines.

3. Innovative Exhaust System
It is innovative in design, which is equipped with support base and a smoke exhaust fan, and it is specially used for laser cutting smoke exhaust. It removes exhaust gases and heat accumulated underneath the honeycomb panels, improving heat dissipation efficiency and reducing the risk of material ignition. The exhaust gases are discharged through an exhaust pipe.

4. High-strength Material
Sculpfun smoke exhaust honeycomb panel is made of high-strength steel, with the support base to ensure that the centre does not collapse during use.

5. Wide Compatibility
The attached fan is provided with a power adapter that allows it to be used with other semiconductor lasers and CO2 lasers.

NOTE:
This product is only suitable for the machines with support feet smaller than 650*650mm. For machines with larger sizes, you can use additional risers to increase the height of the machine to use the honeycomb panel!

Product Name: SCULPFUN H5
Model: H5
Material: high strength steel
Product weight:9.65kg
Product size: 650*650*100mm
Honeycomb area size: 400*400mm

Packing weight:11.5kg
Package size:730*510*220mm
Carton Quantity: 1pcs

Packing List:
4* support base
1* honeycome panel
1* metal protection plate
1*8038 fan
1* fan guard
1* flange connector
1* hose clamp
1* screwdriver
1* hexagon wrench
1* 1.5m exhaust pipe
1* 12V 2A power adapter
1* silicone sleeve
8* non-slip pad
1* screw kit
1* user manual

Honeycomb

SCULPFUN H5 Gen2 Honeycomb Cutting Exhaust Platform 650×650mm Honeycomb Laser Bed with Fume Extraction Fan
