SCULPFUN B70 Enclosure For S70 MAX Smokeproof Fireproof with Fan
Biggest & Beautiful enclosure for your laser engraver, suitable for Sculpfun, Atomstack, iKier, Twotrees, Ortur etc brand laser machines
User Manual
Main Features :
1. Fully Enclosed Design
The B70 laser engraver enclosure is designed with a fully enclosed structure for effective smoke exhaust, ensuring a fresh and clean working environment as well as shielding some of the noise, providing you with a quiet and focused creative space.
2. Metal & Acrylic Frame Structure
The frame uses high-quality aluminum materials combined with acrylic to achieve high strength and stability, keeping good performance even when used for a long period of time.
3. 360° Panoramic Visual Window

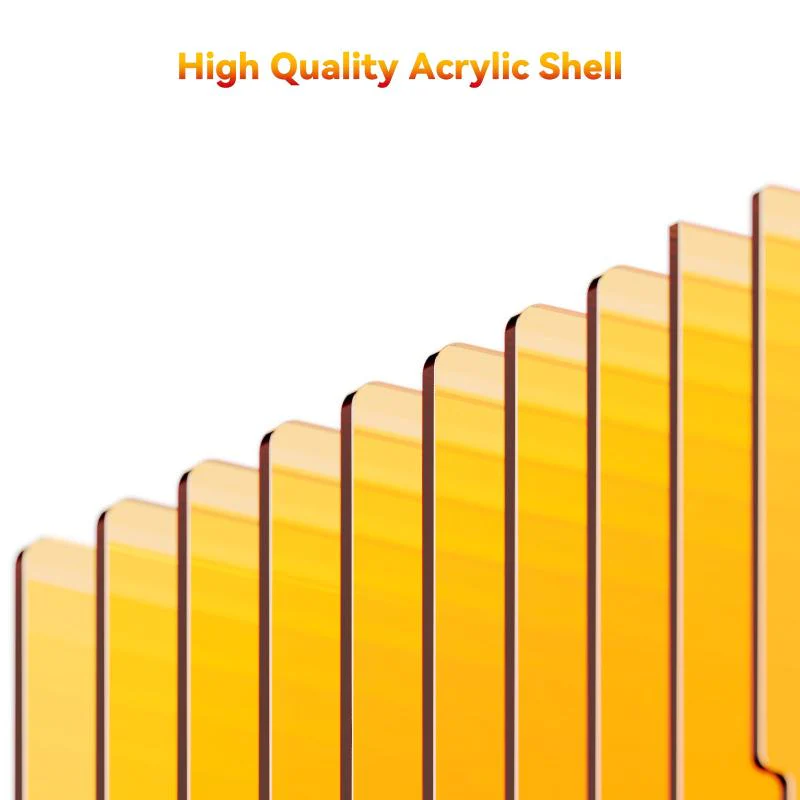

Utilizing high-quality orange transparent acrylic sheets, this product reduces the harm caused by the engraving laser to the eyes during the engraving process. The transparent design enables overall views of the machine operation, so that you can observe the whole engraving and cutting progress at any time.
4. Powerful Exhaust System

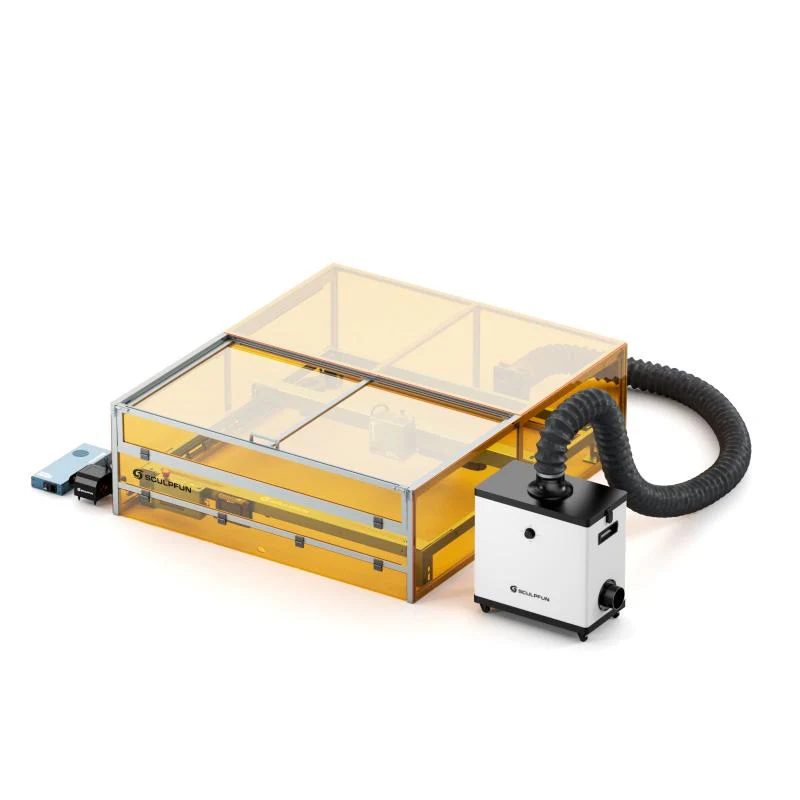

This enclosure is equipped with a high-performance fan, it can quickly filter and exhaust dirty air and harmful fumes during the working process of the laser engraving machine to ensure the optimal performance. Moreover, the B70 can be used with SP1 smoke purifier to purify harmful gases and keep the air fresh.

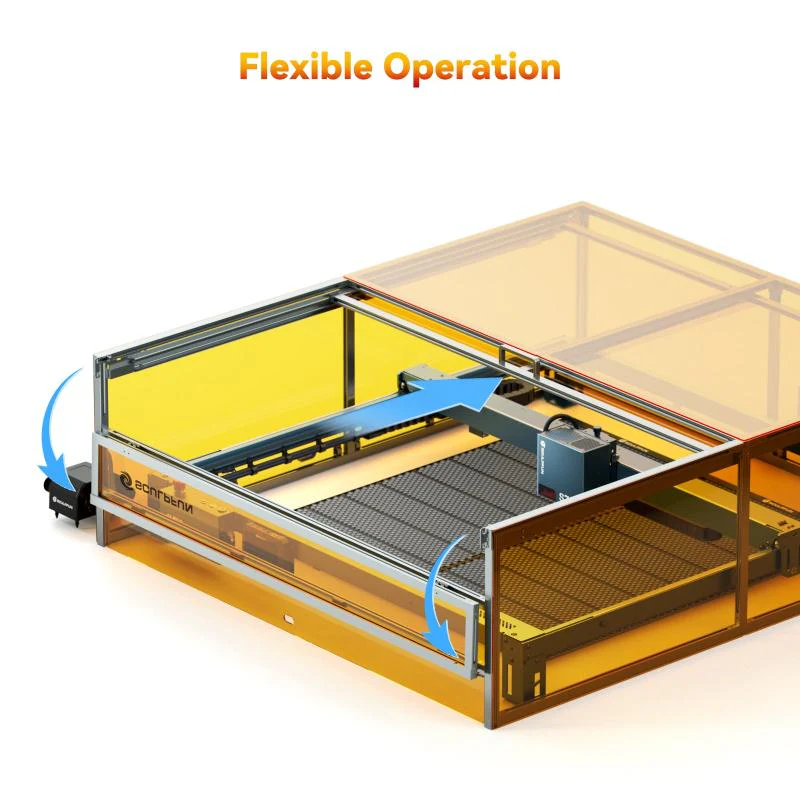

5. Flexible structural Design
Featured with a large sliding viewing window, it allows for easy open and close. Both the upper and lower baffles at the front feature movable designs; the upper baffle can be lowered for easy material placement and movement, while the lower baffle can be opened upward to facilitate the cleaning of cutting residues.
Specification
Product Name: B70 Enclosure
Model Name: B70
Stand Material: Aluminum
Enclosure Material: Saffron Clear Acrylic
Fan Size: 120×120×38mm
Fan Speed: 5700RPM
Diameter of exhaust pipe: 100mm
Length of exhaust pipe: 2m
Power supply specification: 24V, (machine main board power supply, no power adapter in the package)

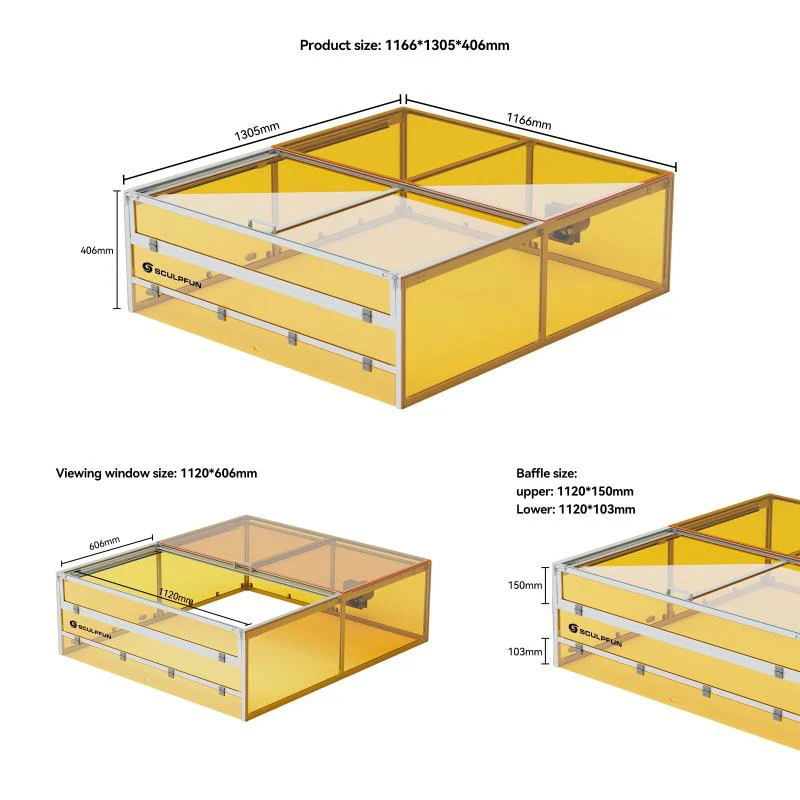

Product size: 1166*1305*406mm
Placeable area: 1120×1260×350mm
Front window area
Upper: 1120×150mm
Lower: 1120×103mm
Upper window area
1120×606mm
Package size
1180*680*175mm
Package weight: 28kg

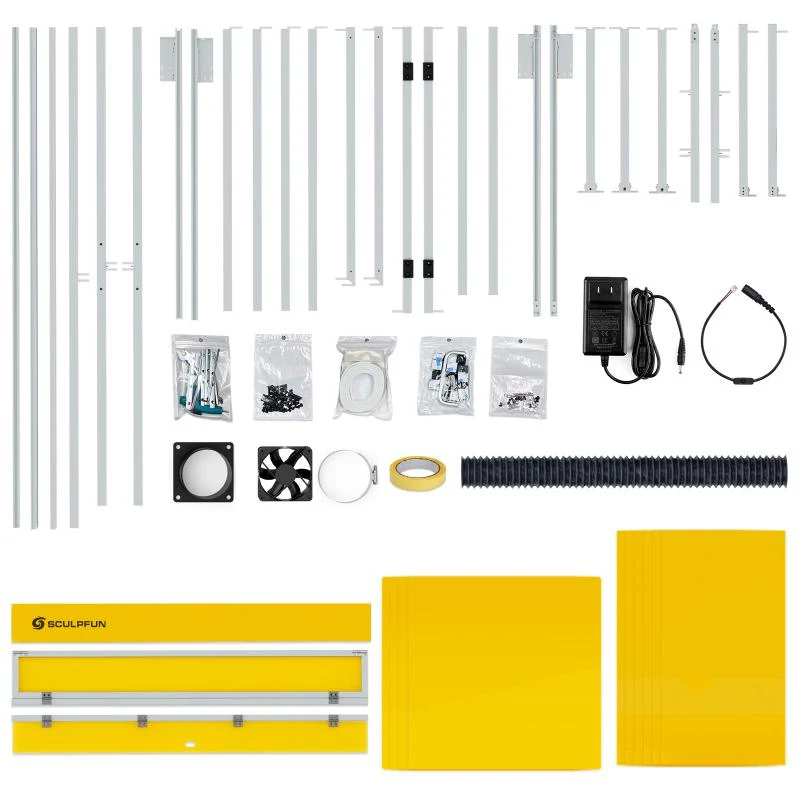

Packing List:
3* acrylic pre-mounted components
10* acrylic sheet
27* aluminum profiles
1* fan
1* exhaust pipe
1* flange
1* hose clamp
1* double faced adhesive tape
5* toolkit
1* fan power adapter cable
1* power adapter
1* user manual
Original: $534.28
-65%$534.28
$187.00
